002 431 31 15 WABCO Air Pressure Unit APU Air Dryer Ass for BENZ truck

Quick Details

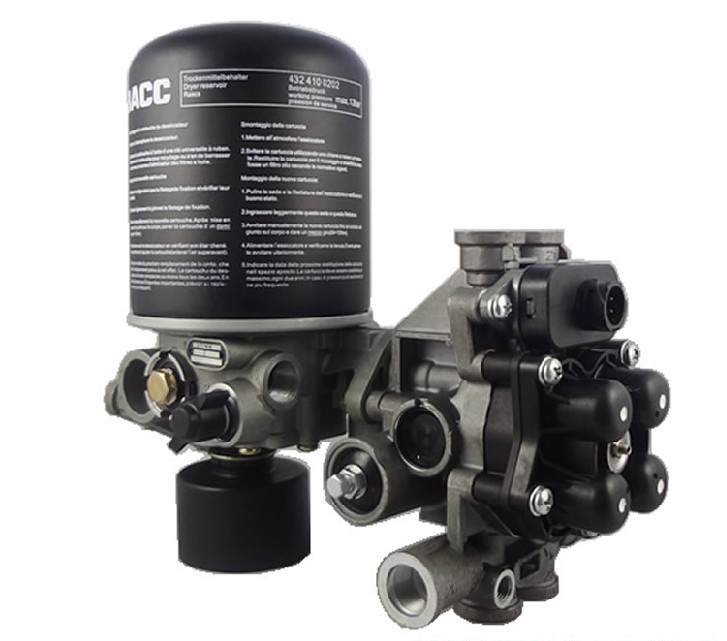

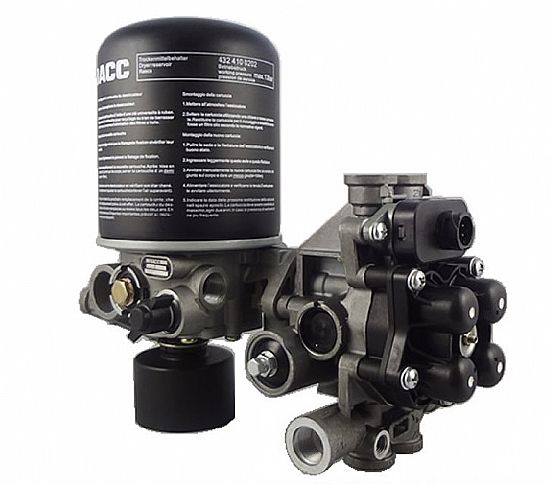

WBACO Truck Air Pressure Unit APU Air Dryer Ass ZB4805/0024313115 For BENZ With Four Circuit Protection Valve

-Reference No.: ZB4805; KNORR: 0024313115

-Applied in vehicles: Benz; Buses; Heavy Trucks; Engineering Equipment

-Desiccant: Molecular Sieve

-Right Hand Thread:Thread M 39x1.5;

-Max operating pressure:13Bar

-Voltage: 24 V

-Heating connection: M 27x1

-Cartridge: 432 410 020 2 (Can be choosed)

-Port 1: M 22x1.5

-Port 21: M 22x1.5

-Port 22: M 12x1.5

-Exhaust: Snap-on contour

-With our logo:"WBACC", Can print your logo once get the Authorization

-Accessories:

• Four Circuit Protection Valve:KNORR: 0034319706
• Heater: With or without (can be choosed)
• Sliencer:With or Without (Can be choosed)

Details of WBACC Desicant:

The quality of the air drying mainly depends on the desiccant used. In order to dry the air supplied by the compressor, specially designed desiccant beads with especially good drying properties and excellent mechanical resistance are used in WBACC cartridges. The latter ensures that the desiccant beads do not disintegrate into dust. Compared with the market standard granulate, the functionality of WBACC desiccant beads “Molecular sieve” has a strong ability of absorbing Moisture.

Our company supply high quality air dryer cartridge, it is used to the heavy truck, and original no. Is 4324100202, welcome to discuss and negotiation.

Name of commodity: Air dryer cartridge
Original no: 432 410 222 7
Specification: M39*1.5
Comment: 13bar

O.E.M. :
DAF: 069 9387
DAF: 699 387
E.R.F.: 136873-1
EVOBUS/SETRA: 8.285.141.196
FAUN: 9970 7305720
HALDEX: 950 310 009
IRISBUS: 80 10002 016
IVECO: 190 7612
IVECO: 299 2261
IVECO: 812 3564
IVECO: 819 0948
KNORR: 272897
KNORR: 272897 SP
KNORR: I 85127/004
KNORR: II 17793/004
KNORR: II 34979
KNORR: II 40100F
LEYLAND: BBU8146
LEYLAND: BBU9424
LIEBHERR: 571 352 308
MAN: 81.521002.0013
MAN: 81.52102.0008
MAN: 81.52102.0009
MAN: 81.52102.0010
MAN: 81.52102.0013
MAN: 81.52102.0015
MAN: 81.52102.0019
MAN: 81.52108.6001
MAN: 82.52102.0013
MERCEDES-BENZ: 000 429 08 97
MERCEDES-BENZ: 000 429 10 97
MERCEDES-BENZ: 000 429 12 97
MERCEDES-BENZ: 000 429 33 95
MERCEDES-BENZ: 000 429 35 95
MERCEDES-BENZ: 000 429 36 95
MERCEDES-BENZ: 000 429 37 95
MERCEDES-BENZ: 000 430 06 69
MERCEDES-BENZ: 0004300969
NEOPLAN: 11017455
NEOPLAN: 1102.736.00
ORENSTEIN + KOPPEL (O+K): 848 0087
RENAULT TRUCKS (RVI): 5 000 295 421
RENAULT TRUCKS (RVI): 5 001 004 902
RENAULT TRUCKS (RVI): 5 001 830 112
SCANIA: 137 5997
SEDDON-ATKINSON: 17 4767
STEYR-DAIMLER-PUCH: 792.00.36.1087
STEYR-DAIMLER-PUCH: 792.00.36.1090
TEREX: 761 176 73
V.A.G (AUDI/SEAT/SKODA/VW): 2TA 607 413
VOLVO: 1699132
VOLVO: 3090268
VOLVO: 3090288
WABCO: 432 410 020 2
WABCO: 432 410 221 2
WABCO: 432 410 222 2
WABCO: 432 410 222 7
WABCO: 432 420 220 2
WABCO: 432 998 020 2
WESTINGHOUSE: 432 410 0202
WESTINGHOUSE: 432 410 2212
WESTINGHOUSE: 432 410 2222
WESTINGHOUSE: 432 410 2227
WESTINGHOUSE: 432 420 2202
WESTINGHOUSE: 432 998 0202

To protect commercial vehicle air and braking systems from aerosol contaminants created by today's advanced engine oils, WBACC's Air System Protector air dryer cartridge incorporates an innovative coalescing filter. Designed to increase the service life of air and braking systems and reduce commercial vehicle downtime and service costs. The integrated coalescing filter traps and collects fine oil droplets (aerosols) present in the vehicle's air system and blends them into a more compact liquid, which optimizes their separation from the circulating air. The air dryer cartridge incorporates a premium desiccant. Significantly reduces air and braking system failure potential, keeping vehicles in service longer. Added advantage: Air System Protector can be easily retrofit to replace most existing standard cartridges.
