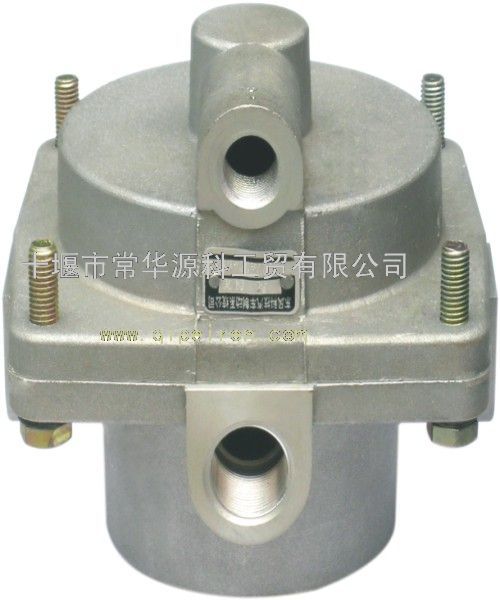

Dongfeng truck spare parts relay valve
OEM:3527N50-010
Port 4: M16*1.5mm
Port 1,21,22,23:M22*1.5mm
Part Name:Relay Valve OEM: 3527N50-010 | |
Application: | |
The relay valves which are used at the end of long pipelines can quickly fill gas cells with compressed air, for example, in trailer or semitrailer brake systems. In lorries the valve serves to shorten reaction and pressure build-up time. | |
Technical features: | |
1 .Max.operating pressure 1000kPa 2. Permissible medium air 3. Temperature range -40℃~+80℃ 4. Operating pressure 800+500kPa | |
Applicable Type of Vehicles: | |
EQ1240、EQ4242G etc heavy truck | |
工作原理: | |
产品工作原理图 : | |
|
