characteristics

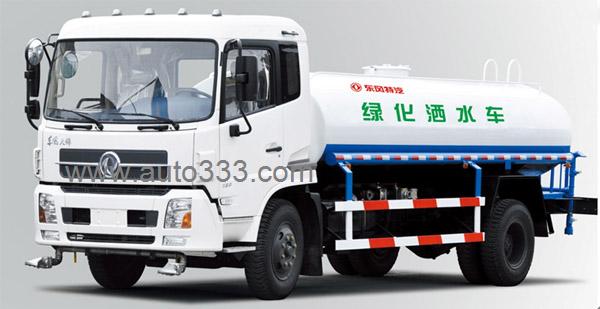

1.This vehicle is remolded on the basis of finalize the designed domestic special vehicle chassis, upper part is consist of Pitcher components, pipe networks equipments, operational control unit and transmission devices, etc.
2.Function as front flushing and rear sprinkling, with side spray, the tail of tank equipped with working platform, and spray gun which can be 360 °rotation is set up on the working platform, etc.
3.With advanced technology, multi-function, this vehicle is an indispensable tool to the Environment Authorities
details:
Overall Dimensions(mm)
8900*2500*2980
Cargo box Inner Size(mm)
5550*1950*1260(Effective volume of tank is 9.1m3)
Wheelbase(mm)
5000,4700
Gross Weight(kg)
16000
Rated Loaded Weight(kg)
8700
Curb Weight(kg)
7105
Engine Model
EQH180 30
Displacement/Power(ml/kw)
4752/132
Displacement standar
Euro 3
Oil Consumption(L/100km)
16.5
Effective Volume(L)
9100
Maximum speed (km/h)
90
Cab Type
D530 A Row of Semi-Flat Head Cab
Audio Configuration
Mp4
Heating and Cooling System
Air Conditioning, warm air
Cold Boot Temperature Range
General condition:-10to55℃;special circumstances:-40to55
Transmission Gear
Dongfeng six Gear transmission
Oil tank capacity
Completed steel 350L
Tire Size
9.00-20, 9.00R20, 10.00-20, 10.00R20
Chassis Model
DFL1160BX
