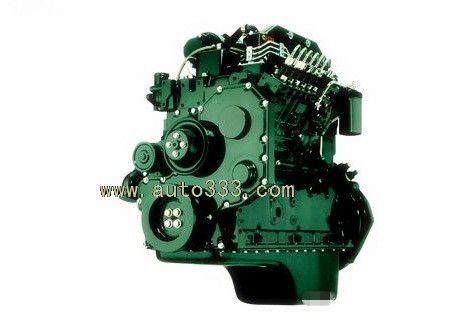

Cummins engine assembly EQB170 20
- Parts number:
- EQB170 20
- model:
- Dongfeng
- origin:
- China
- brand:
- Cummins
- Product Details
- Company Profile
Attribute
Quick Details
| Engine Model | EQB170-20 |
| Engine Type | 6 Cylinders, in Line |
| Displacement | 5.9 L |
| Bore*Stroke(mm) | 102 * 120 |
| Compression Ratio | 17.3:1 |
| CPL Number | 1761 |
| Net Weight (with flywleel & alternator) | 431 Kg |
| Overall Diemension(L*W*H) | 1006mm*872mm*972mm |
| Certification | Euro II |
| Aspiration | Turbocharged & Air-Air Intercooled |
| Fuel System | Bosch P7100 Pump |
| Electrical System(Starter Motor/Alternator) | 12V/500A; 24V/250A |
| Lowest Starting Temp.(with/without auxiliary system) | -10°C/-35°C |
| Engine Cooling Fluid Volume | 9.0 L |
| Rated Power/Speed | 125kW/170HP @ 2500rpm |
| Max.Torque/Speed | 570 N.m @ 1600 rpm |
| Fuel Consumption @ Rated Power | 29.8 l/hr |
| Idel Speed | 750 rpm |
If you need further information, please don't hesitate to contact me
Mobile:86-719-8472985
Fax:86-719-8472986
Skype:yanxin00001
ICQ:686574793
