Dongfeng Tianlong Hercules Renault engine clutch disc assembly

Quick Details

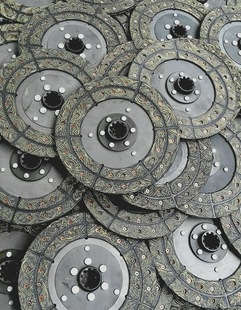

Our company specializes in the production of various models of clutch disc, clutch driven plate and other parts of the transmission system! The picture is for reference only, the specific kind of models as the standard, price negotiable, welcome! Dongfeng Tianlong Hercules Renault engine clutch disc assembly
430 pull big hole clutch chuangpu Dongfeng commercial vehicle matching Dongfeng Tianlong Hercules 430 pull macroporous clutch chuangpu Dongfeng commercial vehicle matching I plant in Shiyan City, the comprehensive performance of quality and Technical Supervision Inspection Center of Dongfeng automobile clutch, a Dongfeng general commercial the car company, (Shiyan) power equipment factory, Dongfeng Engine Parts Factory clutch products supporting enterprises, products exported to the Middle East, Southeast of Iran, has become the clutch products supplier of quality
1601130-T0500/ 1601130-T2700/ 1601130-ZB7C0 part number: diameter * diameter * thickness and inner diameter of the spline tooth number X: 430 x 240 x 10.2 - 10 maximum torque: 3045N  * 50.8mm; friction plate: 430 x 240 x 3.6 Mm 10mm compression thickness: (with Dongfeng Liuqi.. Shaanqi. Heavy truck) models: 6CT Cummins Cummins L series DCi11 series Reynolds 6M Yuchai series car type: note Dongfeng Tianlong the whole system, Hercules Benz heavy Howard clutch disc and pressure plate used to
1, be careful when handling, not throw touch, before assembly must be dust-proof, antifouling, oil is strictly prohibited. 2, clutch plate assembly and driven disc assembly can not arbitrarily replace parts in use; the annular convex or concave groove plate plate need immediate replacement. 3, the installation of the clutch, the appropriate amount of grease in the transmission of 1 shaft spline, to ensure that the drive plate in the gearbox 1 shaft spline on the free movement. 4, attention to the installation, can not damage the driven disc spline, the separation of bearings must be able to slide 1 shaft sleeve on the transmission. 5, the assembly, the separation of travel is too large, easy to make the separation rod hit the driven plate caused burning; separation of the trip is too small, the clutch can not be completely separated from the gear and pick off. />6 8
