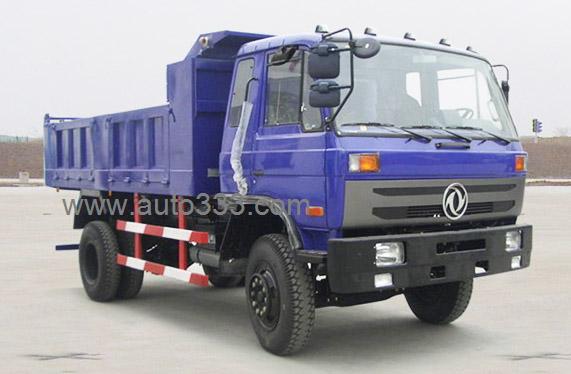

Announcement Car Model: | EQ3216GT |
Exterior color: | blue |
Using condition: mainly used in the transport of Mining rock gravel in the country road general road in the round of the city .
Product features: this truck has a big cargo box large horsepower. the upper adopt the middle hydraulic lift structure ,the vehicle center down about 50mm compared to the same period, the vehicle flip adopt four Turning bearing .smooth and strong when lifting ,the cargo boxes structure design reasonable ,with strong payload.
specifications
description
model
EQ3126GT1
engine
YC6G200-33(EGR)
horsepower(kw)
200/155
lifting type
middle lift double cylinder
emission standard
EURO 3
transmission
6 gear box
cargo box size(mm)
5400,5600,5800*2300*800,1000,1200
clutch
Φ395mm push type diaphragm spring clutch
wheel base(mm)
45,004,700
number of axle
2
Vehicle frame section(mm)
280*80*(7+5)
payload(kg)
10000-20000
oil tanker capacity(L)
200Lcompleted steel oil tanker
wheels
6+1
tire size
10.00-20
Vmax(km/h)
85
spring leaf (pc)
8/10+7
colors
purple
Front/rear axle (kg)
5000/10000
cab
flat head luxurious cab
