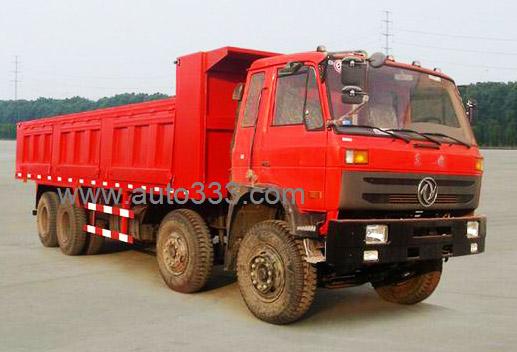

EQ3290GT1 Dump Truck

Quick Details

1.1.Utilize superior quality and limited Dongfeng dump truck chassis, with advanced technology, reliable performance.

2.Adopting late-model high strength steel, which can realize weight reduction, decrease use-cost of vehicle, improves vehicle service life.

3.Semi-automatic.

product details

vehicle model : EQ3290GT1 Dump Truck

overall dimension(mm) : 9150,9250,9450×2480×3200

cargo body inne size(mm) : 6200,6500,6800×2200×1330,1280,1220

wheelbase(mm) : 1950+2850+1350, 1950+2850+1300

rated loading weight(kg) : 15200kg

curb weight(kg) : 14005kg

engine model : YC6A240-31, YC6A260-31, YC6A240-33,

displacement /power : 7255/177, 7255/191, 7255/177

chassis model : EQ3290GFJI
