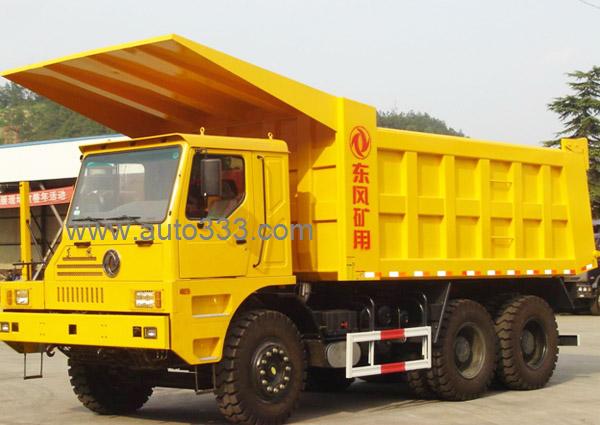

Announcement Car Model: | EQ3160B |
Exterior color: | yellow |
Dimensions: | 8250*3200*4000 |
Container internal dimensions: | 5500*3000*1600 |
Gross weight: | 60000kg |
Drive mode: | Datong 10 Gear(Direct gear ) Speed Ratio of First |
Engine: | YC6M375-20 |
Cab: | Qixing unilateral construction cab |
Tire: | 13.00-25 |
characteristics:
remarks:square cargo body is used for transporting sandy soil,tail upswept cargo body is used for tranporting aggregated rock
details:
Overall Dimensions(mm) |
8250×3200×4000 |
Cargo body Dimensions(mm) |
5500×3000×1600 |
Cab |
Qixing unilateral construction cab |
Vehicle Frame(mm) |
1020×320×(10+10) |
Front/Middle/Rear Axle Loading(T) |
13/25/25 |
Wheelbase(mm) |
3500+1520 |
Number of Axles |
3 |
Number of Tires |
10 |
Fuel Tank Capacity(L) |
Diesel all-steel 380 L fuel tank,equipped with fuel heating device |
Front/Rear Suspension(mm) |
1560/1670 |
Front/Rear Tread(mm) |
2400/2266 |
Minimum Ground Clearance(mm) |
310 |
Number of Steel Leaf Springs |
9/11 |
Maximum Torque(N.m/r/min) |
1550/1600 |
Tire Size |
13.00-25 |
Engine Model |
YC6M375-20(or ) |
Displacement (ml) |
9839 |
Engine Horsepower(kw/rpm) |
275/2100 |
Gross Weight (kg) |
60000 |
Curb Weight(kg) |
25000 |
Clutch(mm) |
Φ430 |
Transmission Gear |
Datong 10 Gear(Direct gear ) Speed Ratio of First Gear :14.28 |
Approach/Departure(°) |
31/23 |
Minimum Turning Radius(m) |
<11 |
Maximum Speed(km/h) |
50 |
Hydraulic Lifting System |
HYVA Front liftingFC169 |
Cargo Body Volume(m3) |
26.4 |
Remarks:Square cargo body is used for transporting sandy soil,tail upswept cargo body is used for transporting aggregated rock |
