characteristics:
1.This vehicle is remolded on the basis of finalize the designed domestic special vehicle chassis, upper part is consist of Pitcher components, pipe networks equipments, operational control unit and transmission devices, etc.
2.Function as front flushing and rear sprinkl
details:
specifications
description
model

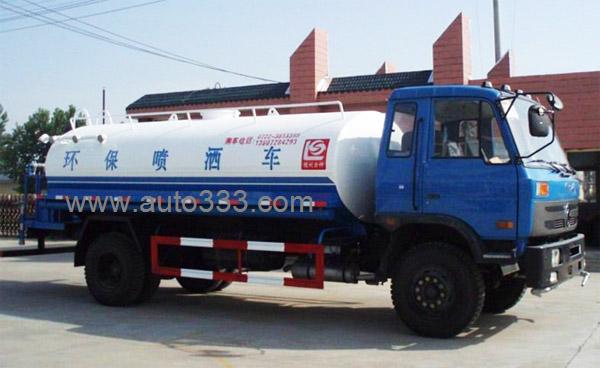

EQ5160GPST3 water truck
engine
Cummins Isde180 30 Isde 185 30 B170 33 B190 33
horsepower(kw)
180/132 185/136 170/125 190/140
Water tanker capacity(m3)
5-10
Tanker thickness(mm)
5
emission standard
EURO 3
transmission
6 gear box
Appearance size (mm)
8600*2490*2950
clutch
Φ395mm push type diaphragm spring clutch
wheel base(mm)
4500,4700
number of axle
2
payload(kg)
5000-10000
oil tanker capacity(L)
160Lcompleted steel oil tanker
wheels
6+1
tire size
10.00-20
Vmax(km/h)
85
spring leaf (pc)
8/12
colors
Dongfeng blue
Front/rear axle (kg)
5000/10000
cab
CPB12-G flat head luxurious cab
