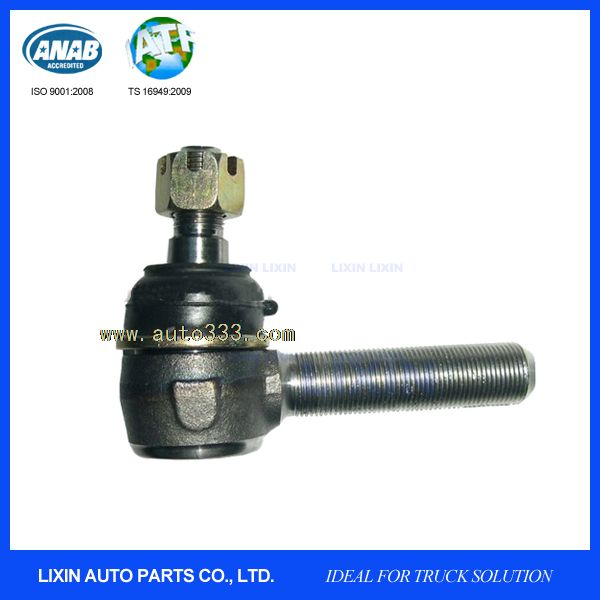

8941032222/8941032232 Tie rod end for Isuzu Truck

8941032222/8941032232 Tie rod end for Isuzu Truck

Size: L=170 M36*1.5 m24*1.5 K=32.4

Short Brief:

1. Precision forged ball stud and housing

2. High-frequency treatment

3. Strictly quality control

4. Material: 45# Carbon steel, 40 Cr, 20 Cr, 40 Mn2

5. Quality standard: ISO TS 16949:2009

6. Delivery Time: delivery in 45 days since receive 50% deposit

Detailed Drawing:

1. Housing: Material AISISAE 1045/DIN C45/ASTM A194-2H.

Hardness reaches to HB179 - 217 after Quenching and High Temperature Tempering.

2. Ball Stud: Material AISISAE 5140/DIN 41Cr4.

Overall Quenched and tempered, polishing again after overall high frequency quenching treatment.

Hardness of Spherical Surface: HRC56 - 63.

All of our conventional products can be delievery in 15 days:

1) 150 types of Tie Rod End that can be ordered from MOQ 200 Pieces based on huge inventory.

2) To ask for a full version of tie rod end catalogue, pls sent mail to us.

We also supply customized products accrording to customers’ drawings, specifications, samples.

1) If you have the drawing: perfectly, you do not need to do anything, we can quote according to the drawing requirments.

2) If you have a sample and OE number: plsease following the measurement guidements, and show us the size details, Car maker, OEM parts number, then we can match a products to you.

3) If you only have the sample and there is no redundant information:

Sent us the sample, we will:

* Test the material.

* Test and gather all the technology specifications and make a drawing by UG software.

* Feedback to customers.

* Put into production.

SAMPLE: If you need sample first, you need to pay the sample charge, and the charge will be refund to you when mass order confirmed. Customized sample maybe available ccording to specific product.

Color Box Packaging:

Neutral Packaging:

Customized Packaging according to customer's requirements:

1. Over 40 years' experience in forging & machining.

2. Passed ISO/TS 16949:2009 certification.

3. Supply both semi-finished and full-finished spare parts mainly cover tie rod end & King pin kits, ball joint, drag link, U steering arm, (v) torque rod & kits, slack adjuster, transmission shaft, etc.

6 production lines:

1 electric hydraulic die forging hammer production line

1 hot die hammer production line

4 double disk friction press (800T/630T/300T/160T) production lines

Our advanced equipments enable us to provide one-stop service from forging blank to finishied spare parts with hight quality, which weight from 0.5-30 kg.

FORGING FACTORY VIEW:

MACHINING FACTORY VIEW:

Left Side: Exhibition in China, 2012-2015

Right Side: Automechanika Fair at Shanghai, Moscow, Dubai, 2012-2015

See you at 2015 Shanghai Automechanika Fair.
