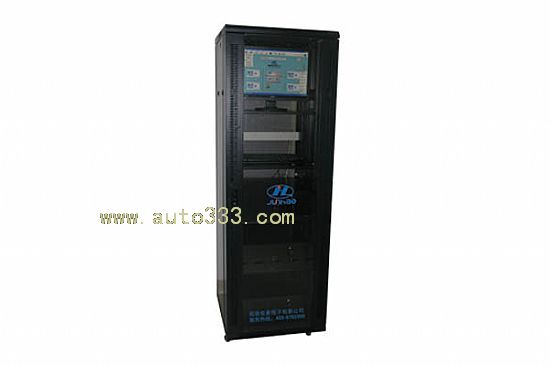

Electric fire monitoring host machine--Network cabinet type

Quick Details

Electric fire monitoring system consists of Electric Fire Monitoring Host Machine, Residual Current Monitor and the system bus. The system exploits bus communication method. The residual current monitor and the detecting modules take separate configuration forms. They can accurately spot the fault loop location and monitor changes of the fault points and then sending off alarm in a centralized way, displaying, handling faults timely, recording faults of all kinds and processing experimental signals. The storage time is up to 12 months.

FH2000 Electric Fire Monitoring Host Machine possesses the functions of fire control linkage, self-checking, reset and mute.

3.1 Number of monitoring points: 1250 pieces of monitors

3.2 Communication distance: 1.2km, we can extend communication distance according to your requirement

3.3 Operation voltage: AC220V

3.4 Monitoring alarm function

3.5 Communication circuit break, short circuit alarm function

3.6 Event record

3.7 Saving Alarm messages up to 100,000 pcs, more than 10 years storage period

3.8Faults information checking and printing

3.9 Customers file creating

3.10 Operator on duty files creating

3.11 Fault locations automatic numbering

3.12 System bus RVV 4 x 1.5 mm 2 or other similar copper wires, four-core bus
