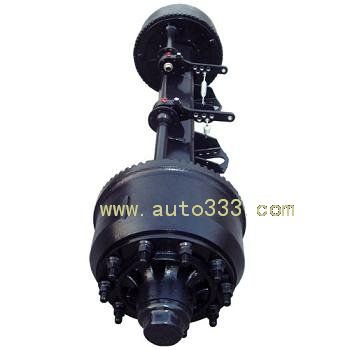

Germany Type Axle 12T

Quick Details

German series drum axle:
1. Capacity: 12ton, 14MT, 16MT trailer and semi-trailer axles;
2. Axle Tube: square 150mm and square 127mm;
3. Track Length: 1840mm
4. Brake Size: 420*200mm
5. Bearing: 33215/32219
6. PCD: 335mm
7. Wheel Fixing: 10-M22*1.5ISO
8. Recommended Wheel: 8.0V-20

Our German axle with spring seat low-alloy steel axle beam one piece special heat:
1.German spindle design which is the widely used in the industry with proven performance;
2.Low-alloy machined spindles, friction welded seamlessly, and overall heat treating process;
3.Axle stubs and brake hubs are all mould forging, ensure they are more powerful and better steady;
4.Special clone-shape design on the axle-shoulders, lessening stress concentration and enhancing anti-fatigue performance;
5.Unique design on axle stubs (with a precise declination angel at both ends) to minimize tire wear;
6.National and industry standard compliant set components;7.TIMKEN bearing
8.National Automobile Monitor and Inspection Center certified axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.
