Tiema Dongfeng kinland Dongfeng kingrunT-lift brake hydraulic hose Assemblies China auto parts

FOB Price:: USD 0.00-0.00/Piece

Min.Order Quantity:: 1 Piece/Pieces

Port:: Shanghai, Shenzhen, Guangzhou, etc. (any coastal port in China)

Payment Terms:: D/P,T/T,Western Union,MoneyGram

origin:: China

brand:: iron hose

Contact Supplier

Product Details
Company Profile

Attribute

Not available

Quick Details

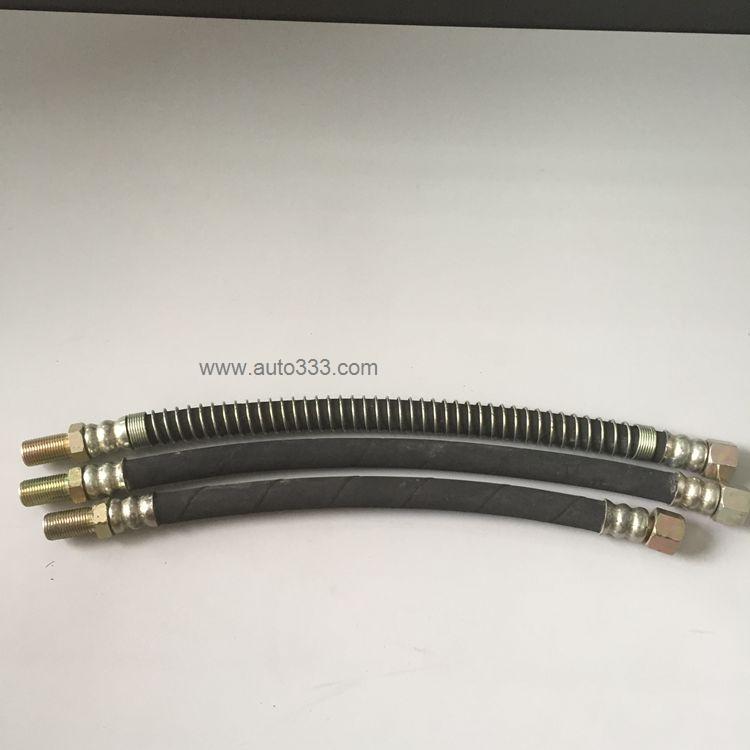

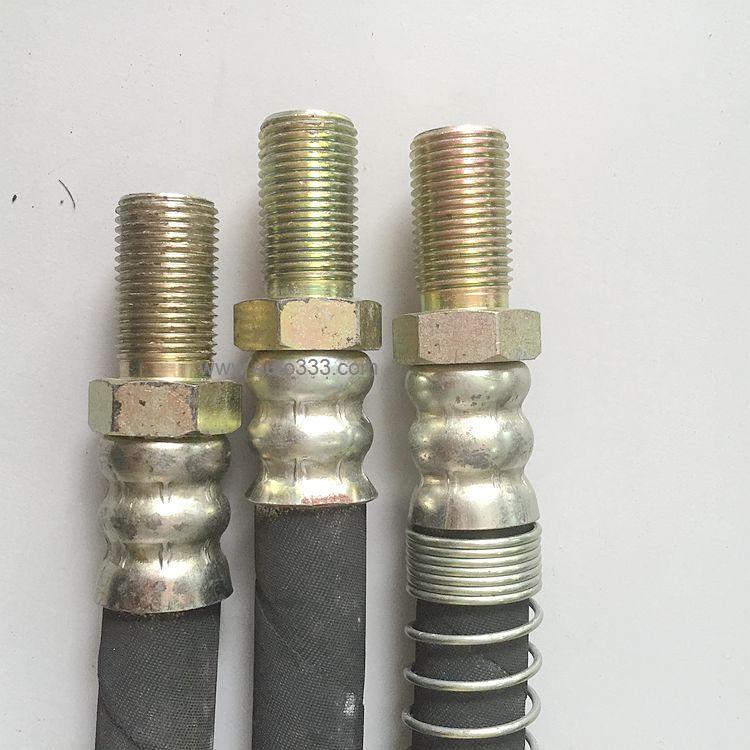

Tiema Dongfeng kinland Dongfeng kingrunT-lift brake hydraulic hose Assemblies China auto parts

Iron Horse hydraulic brake hose is made of EPDM and polyester fibre, meeting the requirement of GB16897. The product has excellent property such as high pressure resistance, lower volumetric expansion, flexibility, small bend radius, aging resistance, oil resistance, cold resistance and long lifespan. It is widely used in brake system on cars and light-duty trucks.

Specification & Parameter

I.D. (mm)	6.9Mpa Max Expansion		10.3Mpa Max Expansion		Min Burst strength(Mpa)
I.D. (mm)	Regular expansion hose	low expansion hose	Regular expansion hose	low expansion hose	Min Burst strength(Mpa)
3.2	2.17	1.08	2.59	1.38	49
4.8	2.82	1.81	3.35	2.36	34.5
6.5	3.41	2.69	4.27	3.84	34.5
