custom made Type III wire-braided hydraulic hose

Port:: wuhan port

Payment Terms:: L/C,T/T,Western Union,MoneyGram

origin:: china

brand:: iron horse

Contact Supplier

Product Details
Company Profile

Attribute

Not available

Quick Details

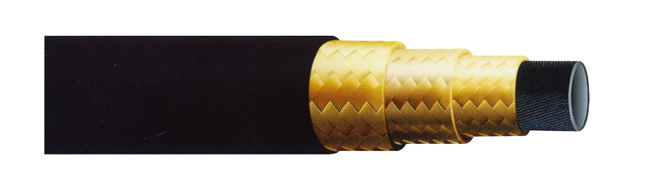

custom made Type III wire-braided hydraulic hose

Executive standard：enterprise standard
Inner layer：oil resistant synthetic rubber
Reinforcement：two layer high strength steel wire, braided
Outer layer：abrasion resistant,ozone resistant,heat resistant and hydrogen compounds resistant synthetic rubber
Temperature：-40℃/+100℃
H: -40℃/+125℃
Delivery air：max temperature +70℃
Delivery water：max temperature +85℃
Delivery medium：oil and water glycol and fluid,lubricant oil,air and water,wielding air
pressure exceeds 1.7Mpa,hose outer rubber need acupunctyre.

Technical data

Hose specification	Hose I.D. (mm)	Reinforcement O.D. (mm)	Hose O.D. (mm)	Max working pressure	Min burst pressure (Mpa)	Min bending radius （mm）
3-5-72	±0.5	±0.6	±0.8	72	180	120
3-6-68	±0.5	±0.6	±0.9	68	170	140
3-8-44	±0.5	±0.6	±0.9	44	110	160
3-10-44	±0.5	±0.6	±0.9	44	110	180
3-13-32	±0.5	±0.8	±1.1	32	96	240
3-16-23	±0.5	±0.8	±1.1	23	69	300
3-19-20	±0.5	±0.8	±1.1	20	60	330
3-22-18	±0.5	±0.8	±1.1	18	54	340
3-25-16	±0.5	±0.8	±1.1	16	48	360
3-25-24	±0.5	±0.8	±1.1	24	60	360
3-32-12	±0.7	±0.8	±1.3	12	36	480
3-38-11	±0.7	±0.8	±1.3	11	33	560
3-51-9	±1.0	±0.8	±1.3	9	27	690
