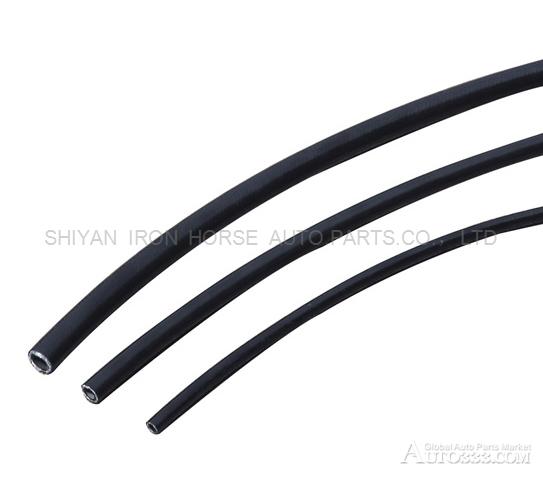

high and medium pressure resin hose
This high and medium pressure resin hose is made of nylon PA11 (or PA12), polyurethane, polyester fiber and adhesive materials. it comply with ISO3949 standard. widely used for for cars and light trucks brake line,automotive power steering,automotive power steering, fork truck,Tractor,Car-carrying LT,road roller, ship driving equipment and air conditional system.
specification
(OD x ID)
|
working pressure
|
Min bending radius
(mm)
|
Working temperature
|
9X4
|
21
|
20
|
,-40℃~+100℃
|
11X6
|
21
|
35
|
,-40℃~+100℃
|
16X9.6
|
16
|
50
|
,-40℃~+100℃
|
21X12.5
|
14
|
70
|
,-40℃~+100℃
|
