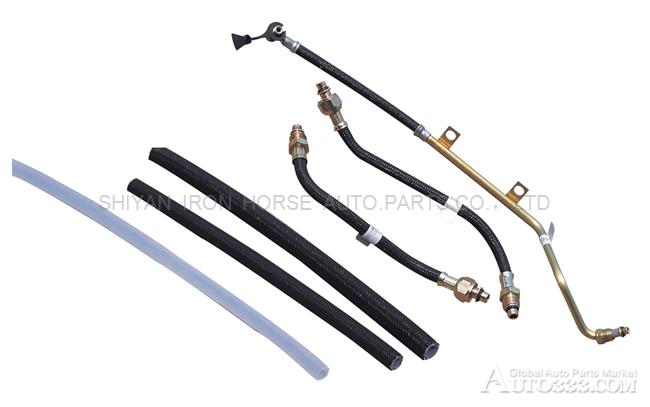

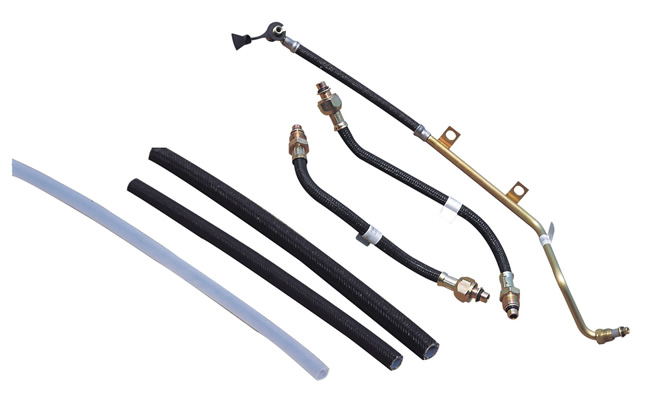

Fiber Braided PTFE Hose
Construction
Inner layer: PTFE PIPE
outer layer:heat resistant fiber braiding
Working temperature
-40℃~+180℃(+200℃ short time)
Application: for high temperature,such as oil coolant hose and turbo oil pipe,etc
I.D.
(mm)
|
Wall
thickness(mm)
|
I.D.
(mm)
|
O.D.
(mm)
|
Min. bend radius(mm)
|
Working
strength(Mpa)
|
(min)Burst
strength(Mpa)
|
Inch
|
mm
|
Inch
|
mm
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
1/8
|
3.2
|
0.03
|
0.76
|
3.0
|
3.20
|
5.7
|
6.0
|
22
|
8
|
26
|
3/16
|
4.5
|
0.03
|
0.76
|
4.6
|
4.75
|
7.3
|
8.5
|
40
|
7
|
24
|
1/4
|
6.3
|
0.03
|
0.76
|
6.0
|
6.50
|
9.3
|
10.7
|
60
|
6
|
22
|
5/16
|
8
|
0.03
|
0.76
|
7.5
|
8.00
|
11.5
|
12.5
|
70
|
5.8
|
18
|
3/8
|
9.53
|
0.03
|
0.76
|
9.1
|
9.60
|
13.5
|
14.6
|
80
|
4.8
|
17
|
1/2
|
12.7
|
0.03
|
0.76
|
11.9
|
12.8
|
15.5
|
16.4
|
110
|
3.6
|
13
|
note:
under temperature of +130℃: T↑1℃,mwp↓0.5%. eg. t=160℃,MWP=(160℃-130℃)x0.5%=15℃
