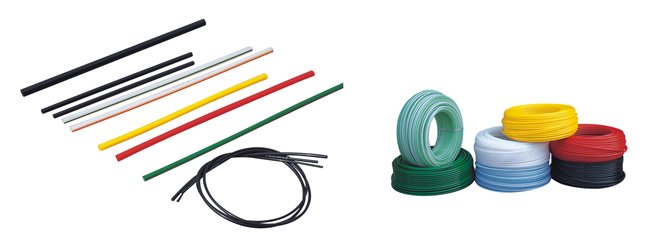

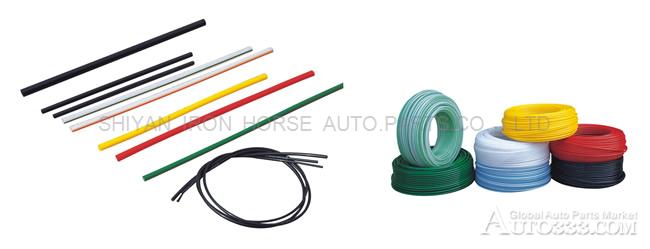

single layer PA tube
Iron horse nylon tube is made of the most chemically and physically stable type of nylon 11 or 12(PA11 OR PA12)
Iron horse nylon tube meets the requirements of DIN73378. GB16897 and SAE J844 standards.These nylon tubes can be applied widely in automotives,engineering machines,assembling production lines and braiding machines etc,as the delivery pip lines of oil,steam,air and water.
Specification & Parameter
O.D. (mm)
|
Thickness(mm)
|
Working pressure
(bar)
|
Min bend radius
(mm)
|
Marking
|
5
|
1
|
34
|
25
|
5x1
|
6
|
1
|
27
|
30
|
6x1
|
8
|
1
|
19
|
40
|
8x1
|
10
|
1
|
15
|
60
|
10x1
|
10
|
1.25
|
19
|
60
|
10 x1.25
|
12
|
1.5
|
19
|
60
|
12x1.5
|
12.5
|
1.25
|
15
|
70
|
12.5x1.25
|
14
|
1.5
|
16
|
75
|
14x1.5
|
14
|
2
|
21
|
75
|
14x2
|
16
|
2
|
19
|
95
|
16x2
|
18
|
1.5
|
12
|
100
|
18x1.5
|
