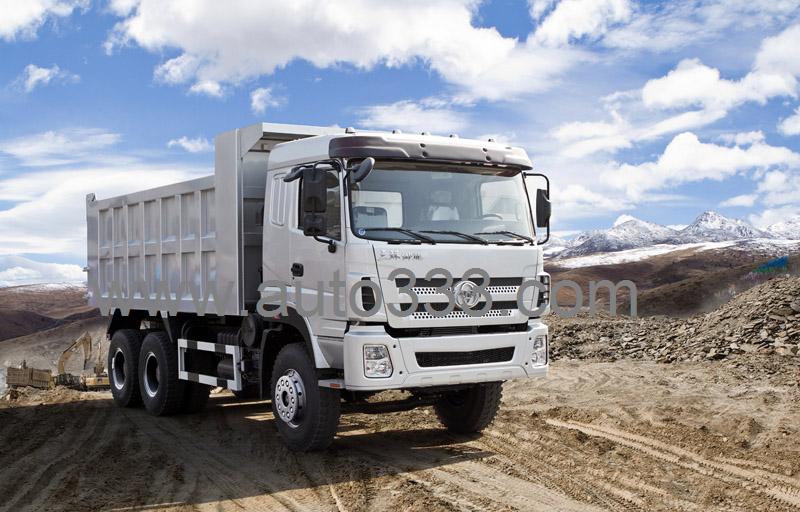

China brand 6x4 35ton new diesel dump truck

Default Specification

*The specification is only for chassis truck without any cargo box or modification

Overall Parameters

Truck model

STQ3256L8Y9S3

Wheel base

3850mm+1350mm

Rated loading capacity

35000kg

Overall dimension(L×W×H)

8510mm×2490mm×3250mm

Gross Vehicle Mass(GVM)

65000kg

Max economical speed

65km/h @ 1500rpm

Cabin

Cabin Model

T380 flat-roof LHD (1 sleeper)

Air Condition

with Merit Brand A/C

Engine

Brand @ Model

Yuchai @ YC6MK340-33

Intake way

Turbo inter-cooling

Rated power & speed

340HP (250KW) & 1900rpm

Max. torque

1550N.M

Engine type

in-line,4-stroke,water-cooled

Bore x Stroke

123mmx145mm

Displacement

6 cylinders,10.338L,diesel

Green Band

1100~1500RPM

Emission standard

Euro-Ⅲ

Fuel injection pump

Mechanical Pump

Gearbox

Brand @ Model

Fast·Fuller @ 12JS160TA

Type

Manual,12 forward gear,2 reverse gear,rated input torque 1600N.M

Gearbox ratio

Forward:12.10,9.41,7.31,5.71,4.46,3.48,2.71,2.11,1.64,1.28,1.00,0.78
Reverse:11.56,2.59

Chassis Frame & Suspension System

Chassis frame

P610L high strenth steel,frame breadth 300mm,double-deck(10mm+8mm)

Front axle

Dongfeng Dana 7T front axle x1

Rear axle

Qingte Benz technology 16T cast steel hub reduction rear axle x2,default ratio:5.92

Front suspension

Number/Thickness of leaf spring: 9/18mm

Rear suspension

Number/Thickness of leaf spring: 12/25mm

Bodyworks

Tire & Wheel Rim

12.00R-20-18 aoelus brand steel wire tire(construction) x11

Fuel Tank

280L black steel

Air Filter

Desirt air filter

Matchable Cargo Box & Modification

Cargo Box

Dump cargo box length of 5.6m

Modification

Concrete Mixer,Tanker etc.
