Announcement Car Model: | STQ3256L8Y9S3 |
Fuel Type: | Diesel fuel |
Dimensions: | 8510mm×2490mm×3250mm |
Gross weight: | 65000kg |
Rated load: | 35000kg |
Drive mode: | 6x4 |
Engine: | Yuchai @ YC6MK340-33 |
Transmission: | Fast·Fuller @ RT-11509C |
Maebashi: | 7t |
Rear axle: | 16t |
Wheelbase: | 3850mm+1350mm |
Tire: | 12.00R-20-18 |

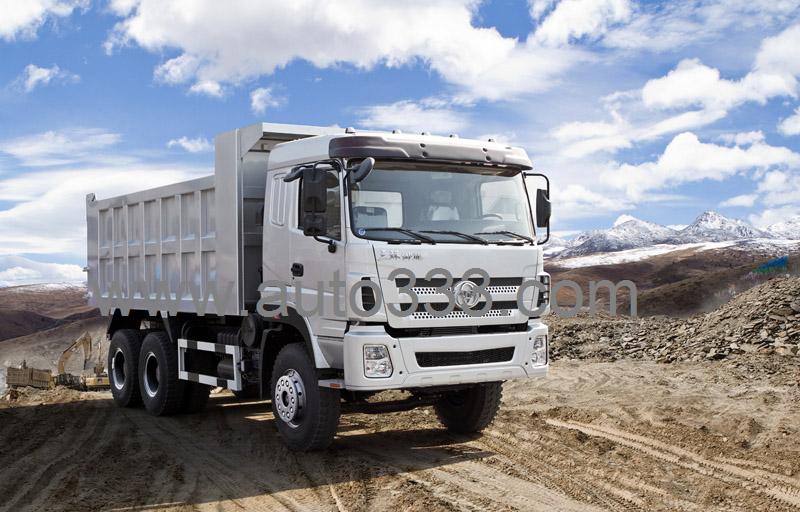

China tipper trucks for sale high quality 6x4 35t dump truck
Specification:
Default Specification |
||||
|
||||
*The specification is only for chassis truck without any cargo box or modification |
||||
Overall Parameters |
||||
Truck model |
STQ3256L8Y9S3 |
Wheel base |
3850mm+1350mm |
|
Rated loading capacity |
35000kg |
Overall dimension(L×W×H) |
8510mm×2490mm×3250mm |
|
Gross Vehicle Mass(GVM) |
65000kg |
Max economical speed |
65km/h @ 1500rpm |
|
|
||||
Cabin |
||||
Cabin Model |
T380 flat-roof LHD (1 sleeper) |
Air Condition |
with Merit Brand A/C |
|
|
||||
Engine |
||||
Brand @ Model |
Yuchai @ YC6MK340-33 |
Intake way |
Turbo inter-cooling |
|
Rated power & speed |
340HP (250KW) & 1900rpm |
Max. torque |
1550N.M |
|
Engine type |
in-line,4-stroke,water-cooled |
Bore x Stroke |
123mmx145mm |
|
Displacement |
6 cylinders,10.338L,diesel |
Green Band |
1100~1500RPM |
|
Emission standard |
Euro-Ⅲ |
Fuel injection pump |
Mechanical Pump |
|
|
|
|
|
|
Gearbox |
||||
Brand @ Model |
Fast·Fuller @ 12JS160TA |
|||
Type |
Manual,12 forward gear,2 reverse gear,rated input torque 1600N.M |
|||
Gearbox ratio |
Forward:12.10,9.41,7.31,5.71,4.46,3.48,2.71,2.11,1.64,1.28,1.00,0.78 |
|||
|
|
|||
|
||||
Chassis Frame & Suspension System |
||||
Chassis frame |
P610L high strenth steel,frame breadth 300mm,double-deck(10mm+8mm) |
|||
Front axle |
Dongfeng Dana 7T front axle x1 |
|||
Rear axle |
Qingte Benz technology 16T cast steel hub reduction rear axle x2,default ratio:5.92 |
|||
Front suspension |
Number/Thickness of leaf spring: 9/18mm |
|||
Rear suspension |
Number/Thickness of leaf spring: 12/25mm |
|||
|
||||
Bodyworks |
||||
Tire & Wheel Rim |
12.00R-20-18 aoelus brand steel wire tire(construction) x11 |
|||
Fuel Tank |
280L black steel |
|||
Air Filter |
Desirt air filter |
|||
|
|
|
|
|
Matchable Cargo Box & Modification |
||||
Cargo Box |
Dump cargo box length of 5.6m |
|||
Modification |
Concrete Mixer,Tanker etc. |
