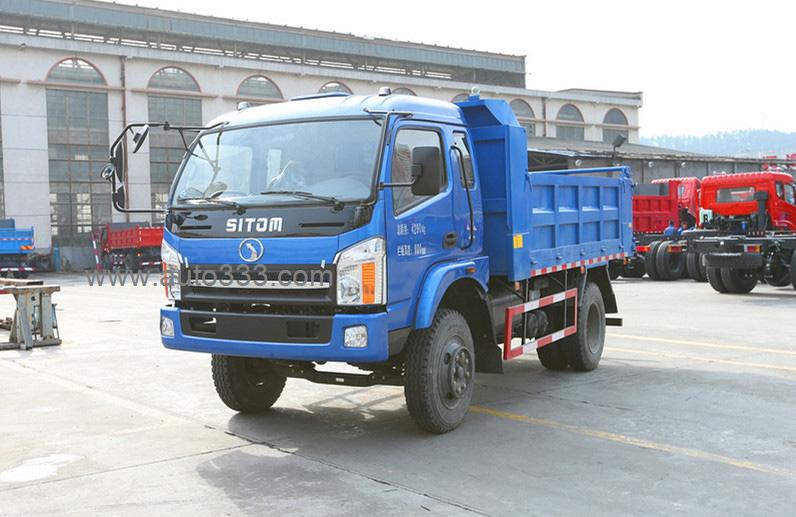

best price 10 ton light tipper truck sale

Default Specification

*The specification is only for chassis truck without any cargo box or modification

Overall Parameters

Truck model

STQ3129L3Y13

Wheel base

3300mm

Rated loading capacity

9000kg

Overall dimension(L×W×H)

5990mmx2250mmx2490mm

Gross Vehicle Mass

18000kg

Max Economical speed

62km/h @ 1900rpm

Cabin

Cabin Model

TRP1059W LDH (1 sleeper)

Air Condition

without A/C

Engine

Brand @ Model

Cummins @ B140 33

Intake way

Turbo inter-cooling

Rated power & speed

140HP (103KW) & 2500rpm

Max. torque

500N.M

Engine type

in-line,4-stroke,water-cooled

Bore x Stroke

102mmx120mm

Displacement

4 cylinders,3.9L,diesel

Green Band

1200~1900RPM

Emission standard

Euro-Ⅲ

Fuel injection pump

Mechanical Pump

Gearbox

Brand @ Model

Fast·Fuller @ 8JS85T

Type

Manual,8 forward gear,2 reverse gear,rated input torque 850N.M

Gearbox ratio

Forward:8.12,6.08,4.47,3.31,2.46,1.84,1.35,1.00
Reverse:8.12,2.46

Chassis Frame & Suspension System

Chassis frame

frame breadth 250mm,double-deck(6.5mm+5mm)

Front axle

3.6T 145-short front axle x1

Rear axle

9T 1098C single-reduction rear axle x1,default ratio:5.571

Front suspension

Number/Thickness of leaf spring: 8/13mm

Rear suspension

Number/Thickness of leaf spring: 11/16mm+8/13mm

Bodyworks

Tire

9.00-20-16 nylon wire tire x7

Fuel Tank

200L

Air Filter

Standard

Matchable Cargo Box & Modification

Cargo Box

Dump cargo box length of 3.7m

Modification

Tanker etc.
