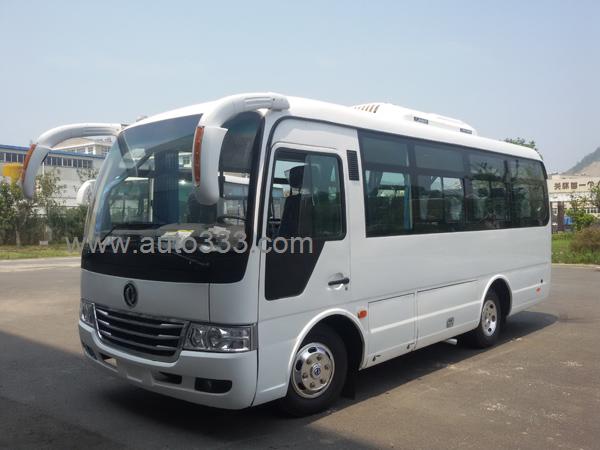

China manufacturer 6.6M 23 seats new design coach bus 2015
- Port:
- shanghai
- Payment Terms:
- L/C,T/T
- Product Details
- Company Profile
Attribute
Quick Details
China manufacturer 6.6M 23 seats new design coach bus 2015
Specification
| chassis Model | EQ6570KSD4D | Bus Model | EQ6662L4D | ||
| Dimension | Length(mm) | 6600 | Engine | Engine model | YC4FA115-30(55A) |
| Width(mm) | 2200 | Fuel type | Diseal | ||
| Height(mm) | 2800,3000 | discharge standard | Euro 3 | ||
| Internal Heigh(mm) | / | Engine location | Front location | ||
| Wheelbase(mm) | 3300 | Ccompression ratio | -------- | ||
| Tread(front/rear,mm) | 1750/1586 | maximum power | 103/2800 | ||
| Front overhang/rear overhang(mm) | 1185/2165 | max Torque | 450/1600-1800 | ||
| Min ground clearance(mm) | ≥165 | Performance parameters | Fully-loading)braking distance | ≤10 | |
| Approach angle/departure angle(°) | 22/13 | (L/100km)Fuel consumption limit condition | ≤12 | ||
| Luggage room capacity(m3) | / | (km/h) max speed | ≥110 | ||
| Quality parameters | unladen mass(kg) | 3840 | Gradeability largest (%) | ≥30 | |
| MAX mass(kg) | 5500 | min turning Diameter | ≤14 | ||
| Fully loading mass(front/rear,kg) | 2200/4000 | oil tank capacity | 90 L | ||
| Items | Body configuration | ||||
| Chassis spec | Clutch | Diaphragm spring,Driven plate diameter ,hydraulic pressure remote control .with Cluth Booster. | |||
| Transmission | DONGFENG | ||||
| Front axles/rear axles | DONGFENG DANA Axles. | ||||
| Suspension system | Both front and rear suspension assembly with Semi-elliptic multi-leaf springs(front 8/rear 10),Hydraulic Shock Absorber, Front Suspension with horizontal Stabilizer Bar | ||||
| Steering system | Power steering, Steering wheel position can be adjust | ||||
| Braking system | Service brake:split braking system,drum brake(diameter320mm,front width100mmrear width 120mm,Brake series | ||||
| Stop braking:energy storage spring brake ,Clutch Booster | |||||
| Option ABS or Exhaust Brake. | |||||
| Tires | 7.00-16 | ||||
| Electrical lines | 24V,One-way system,negative electrode Ground | ||||
| Dynamotor | 90A | ||||
| Starting engine | Electromagnetically-operated | ||||
| Storage battery | two units,100Ah/24V | ||||
| Others |
1,Chassis to deal with anti-rust spray wax 2,use of large water tanks,10 pices fan leaf C32 3, Gearbox lubricants used Model W140, Frozen liquid use model -20 Anti-freezing oil, |
||||
| Body spec | Body Structure | Half-integral body structure | |||
| Interior | Softening treatment,Ordinary Interior | ||||
| Passenger's door | Pneumatic Out-open door , Optional: folding door | ||||
| luggage room | On the left side | ||||
| side bunker | Air filter and battery maintenance door with Lock | ||||
| flooring | Flat flooring | ||||
| flooring | Fully Aluminum Floor | ||||
| glass | Large panoramic surface Windshield glass | ||||
| side windows | All the windows from can open in the middle | ||||
| Instrument panel | Luxurious instrument panel with Peachwood decoration, debris boxes, handrails | ||||
| Driver's seat | Adjustable high back reclining chair | ||||
| Passenger seat | 10-25 seats | ||||
| baggage rack,railing and guardrail | Both internal baggage rack | ||||
| both topping railing | |||||
| Guardrail of the passenger door | |||||
| The end of the window Guardrail | |||||
| A/C System | Without A/C ,Optional : With air conditioning | ||||
| Warm braw | Defroster | ||||
| Audiovisual system | With MP3, Optional :MP5 radio MP5+DVD+17 LED | ||||
| Rearview mirror | Manually rabbit ear type rearview mirror | ||||
| Internal Rearview mirror | |||||
| lamp | Integral front and rear headlights | ||||
| windscreen wiper, | Opposed windscreen wiper | ||||
| Others Standard configuration | Driver's Sunshade Curtains | ||||
| Side Sunshade Curtains | |||||
| Electricity/air horn | |||||
| Electric fan /Aluminum alloy wheel cover | |||||
| Engine cover | |||||
| Cigar Lighter | |||||
| Electronic clock | |||||
| Triangle warning plate | |||||
| Safety hammer(four units) | |||||
| Fire extinguishers | |||||
| electric fan | |||||
| Security window(DS700C) | |||||
| Standard: G-LINK (compatible drive recorder, reversing monitor, cassette players) | |||||
| desiccator | |||||
| paint | Ordinary paint | ||||
| Paint color | White | ||||
| pattern | To be determined | ||||
