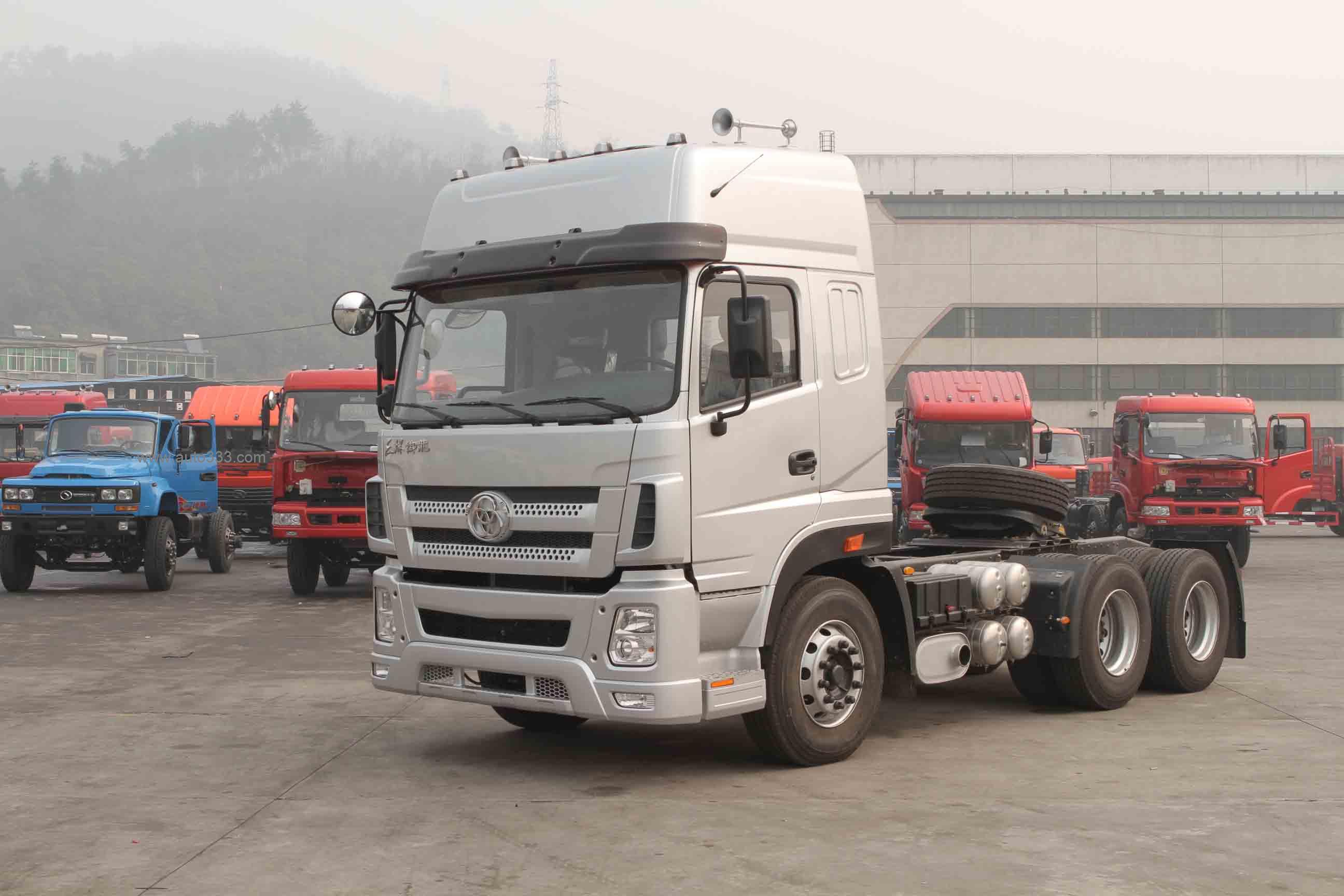

China manufacturer T380 diesel new tralier truck head

Overall Parameters

Truck model

STQ4251L7Y9S33

Wheel base

3400mm+1300mm

Rated towing capacity

40000kg

Overall dimension(L×W×H)

6990mm×2490mm×3250mm

Gross Combination Mass(GCM)

55000kg

Max economical speed

85km/h @ 1500rpm

Cabin

Cabin Model

T380 high-roof LHD (2 sleeper)

Air Condition

with Merit Brand A/C

Engine

Brand @ Model

Cummins @ LK375 33

Intake way

Turbo inter-cooling

Rated power & speed

375HP (275KW) & 2000rpm

Max. torque

1600N.M

Engine type

in-line,4-stroke,water-cooled

Bore x Stroke

116.5mmx148mm

Displacement

6 cylinders,9.5L,diesel

Green Band

1100~1500RPM

Emission standard

Euro-Ⅲ

Fuel injection pump

Mechanical Pump

Gearbox

Brand @ Model

Fast·Fuller @ 12JSD160TA (aluminum alloy body)

Type

Manual,12 forward gear,2 reverse gear,rated input torque 1600N.M

Gearbox ratio

Forward:12.10,9.41,7.31,5.71,4.46,3.48,2.71,2.11,1.64,1.28,1.00,0.78
Reverse:11.56,2.59

Chassis Frame & Suspension System

Chassis frame

P610L high strenth steel,frame breadth 300mm,double-deck(8mm+4mm)

Front axle

5T Dongfeng Dana 153 front axle x1

Rear axle

13T Dongfeng Dana 462 single-reduction rear axle x2,default ratio:4.44

Front suspension

Number/Thickness of leaf spring: 3/22mm

Rear suspension

Number/Thickness of leaf spring: 4/30mm

Bodyworks

Tire & Wheel Rim

315/80R22.5 aoelus tubeless tire x11

Fuel Tank

600L aluminium

Air Filter

Standard

Fifth Wheel

dongfeng 90# fifth wheel
