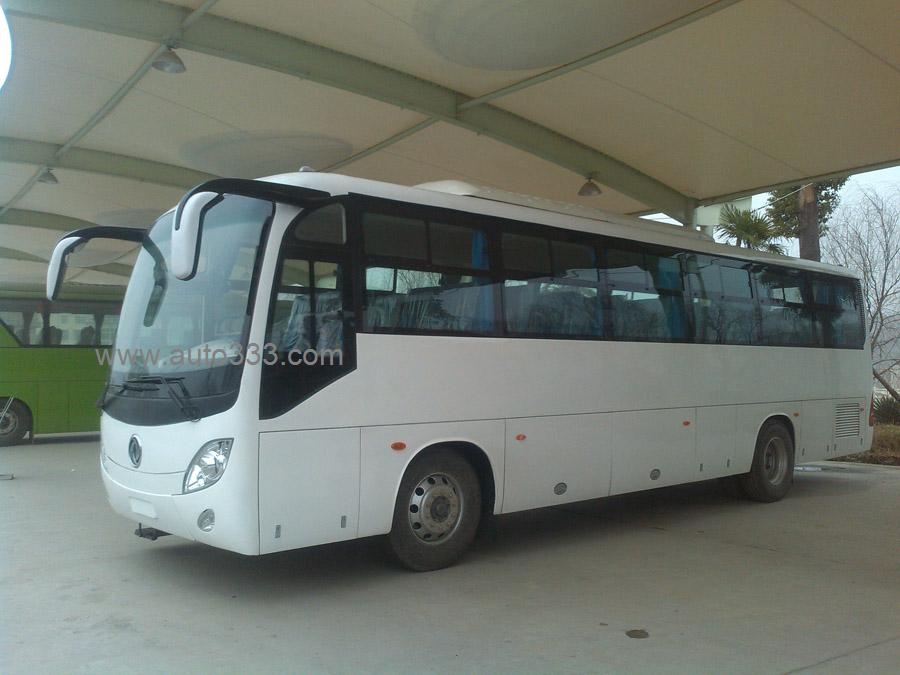

Best price Dongfeng brand 11m long 45 seater bus with AC
Specification
Chassis Model | EQ6113KR4D | Bus Model | EQ6113L4D | ||
Dimension | Length(mm) | 11300 | Engine | Engine model | YC6J270-42 |
Width(mm) | 2490 | Fuel type | Diesel | ||
Height(mm) | 3330 | Discharge standard | Europe IV | ||
Internal Heigh(mm) | 2000 | Engine location | Rear location | ||
Wheelbase(mm) | 5250 | Compression ratio | 17.5:1 | ||
Tread(front/rear,mm) | 1915/1800 | Maximum power(kw/rpm) | 180/2500 | ||
Front overhang/rear overhang(mm) | 2100/3130 | Max Torque (N.m/rpm) | 890/1200-1700 | ||
Minimum ground clearance(mm) | ≥200 | Performance parameters | Braking distance(m,v=30km/h fully-loading) | ≤10 | |
Approach angle/departure angle(°) | 11/9 | Fuel consumption limit condition(L/100km) | ≤25 | ||
Luggage room capacity(m3) | ≥4.6 | Max speed(km/h) | 100km/h | ||
Quality parameters | Curbweight(kg) | 9760 | Gradeability largest (%) | ≥28 | |
MAX mass(kg) | 13600 | Min turning Diameter(m) | ≤18 | ||
Fully loading mass(front/rear,kg) | 4600/9000 | Oil tank capacity(L) | 400L | ||
Items | Body configuration | ||||
Chassis spec | Clutch | Φ395Diaphragm spring,Hydraulic long-range operation,Clutch booster | |||
Transmission | Fast.Fuller 5J100T manually operation transmission with overdrive, soft shaft manipulation | ||||
Front axles/rear axles | Dongfeng Dana Axles , load capacity 4500kg | ||||
Dongfeng Dana Axles ,load capacity9000kg | |||||
Suspension system | Both front and rear suspension assembly with multi-leaf springs(front 9/rear 11),Front Suspension with horizontal Stabilizer Bar | ||||
Steering system | Integral power steering | ||||
Braking system | Pneumatic double-loop,druma driving brakes,Automatically adjusted arm,the exhaust brake,air braker,drier, with ABS and Pedal type retarder | ||||
Floor | The wear-resisting floor leather | ||||
Tires | 11R22.5 | ||||
Body specification | Body Structure | Semi-unibody | |||
Front passenger door | The pneumatic outside swing door | ||||
Middle passenger door | The pneumatic outside swing door | ||||
Side window | The first, third and tail window sash windows in the window, For the rest of the bonding of glass | ||||
Front windshield sunshade | Double sunshade | ||||
luggage room | On both sides of the open type inner luggage rack | ||||
Driver's seat | Mechanical shock absorption chair,Adjustable high back reclining chair | ||||
Electric G-link | Standard | ||||
Driving directions | Left-hand drive direction | ||||
Passenger seat | Standard of 47 seats With seat belts , Standard guide seat | ||||
Air-conditioning | with air conditioning , Non independent top setting air conditioner | ||||
Others |
Drivers fence Right front fence The last row of seats on both sides of the fence |
||||
Reversing Monitor ,G-link with this feature | |||||
Electricity/air horn | |||||
2 car fire extinguisher, each 4 kilograms | |||||
Aluminum alloy wheel covers | |||||
safety skylight | |||||
Cigar Lighter | |||||
Electronic clock | |||||
Triangle warning plate | |||||
4 safety hammer | |||||
Fire estinguisher | |||||
The integral type headlamps, taillights, integral step lamp, car lamp, luggage compartment light | |||||
Paint | All body with metallic paint | ||||
Pattern | To be determined |
