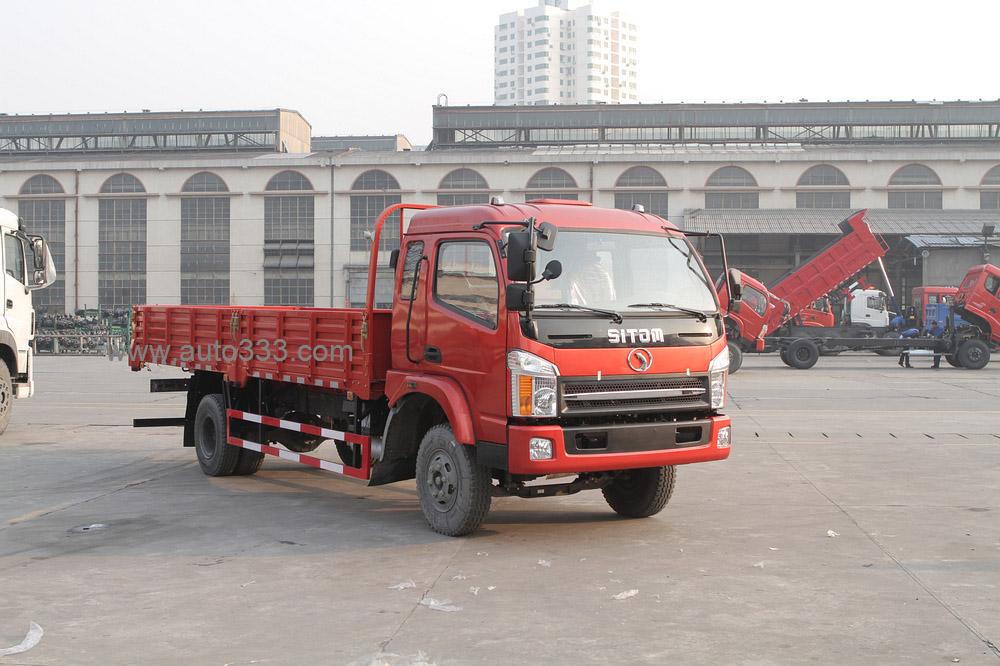

High quality Stiom 8 ton 4x2 new cargo truck for sale

Default Specification

*The specification is only for chassis truck without any cargo box or modification

Overall Parameters

Truck model

STQ1087L7Y1

Wheel base

4700mm

Rated loading capacity

8000kg

Overall dimension(L×W×H)

8550mmx2250mmx2490mm

Gross Vehicle Mass

15000kg

Max Economical speed

82km/h @ 1900rpm

Cabin

Cabin Model

TRP1059W LDH (1 sleeper)

Air Condition

without A/C

Engine

Brand @ Model

Cummins @ B140 33

Intake way

Turbo inter-cooling

Rated power & speed

140HP (103KW) & 2500rpm

Max. torque

500N.M

Engine type

in-line,4-stroke,water-cooled

Bore x Stroke

102mmx120mm

Displacement

4 cylinders,3.9L,diesel

Green Band

1200~1900RPM

Emission standard

Euro-Ⅲ

Fuel injection pump

Mechanical Pump

Gearbox

Brand @ Model

Fast·Fuller @ 6DS60T

Type

Manual,6 forward gear,1 reverse gear,rated input torque 600N.M

Gearbox ratio

Forward:6.67,4.01,2.42,1.52,1.00,0.78
Reverse:6.13

Chassis Frame & Suspension System

Chassis frame

frame breadth 230mm,double-deck(6.5mm+5mm)

Front axle

2.6T 140B front axle x1

Rear axle

8T 145Q single-reduction rear axle x1,default ratio:5.286

Front suspension

Number/Thickness of leaf spring: 9/11mm

Rear suspension

Number/Thickness of leaf spring: 12/13mm+9/11mm

Bodyworks

Tire

8.25R-20-16 aeolus brand steel wire tire x7

Fuel Tank

160L (140)

Air Filter

Standard

Matchable Cargo Box & Modification

Cargo Box

cargo box length of 6.2*2.3*0.55m

Modification

van,tanker,stake cargo box etc.
