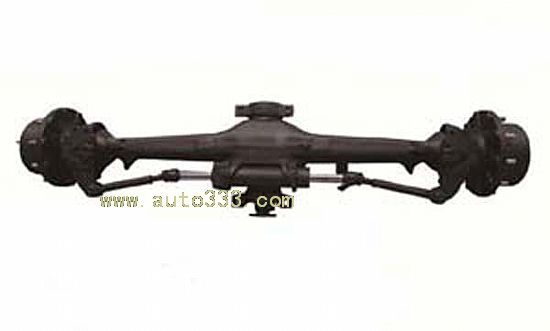

Agricultural Machinery Vehicle Front Steering Driving Axle
- Parts number:
- CH1801
- model:
- Agricultural Machinery Vehicle
- origin:
- China
- brand:
- CJAXLE
- Product Details
- Company Profile
Attribute
Quick Details
| CH1801 | |
| Agricultural Machinery Vehicle Front Steering Driving Axle | |
| Model | CH1801 |
| Nominal Load(Kg) | 7500 |
| Wheel Tread(mm) | 1820 |
| Kingpin Inclination(°) | 7° |
| Caster Angle(°) | 0° |
| Kingpin Camber(°) | 1.5° |
| Kingpin Distance(mm) | 1560 |
| Tie-in(mm) -2~2 | 0 |
| Max.Turning Angle(°) | inner 50°/outer39.32° |
| Central Reduction Device Ratio | 3 |
| Wheels Reduction Device Ratio | 6.923 |
| Input Maximum Allowable Twisting (Nm) | 760 |
| Brake Spec. | Multi-disk Wet Brake |
| Axle Weight(Kg) | 470 |
| Matching Model | 1604/1804 Tractor Series |
