CH5HB | ||

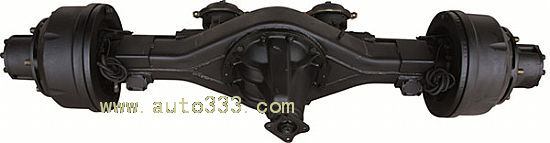

Drum Brake Rear Axle | ||
Model | CH5HB | |
Nominal Load(Kg) | 5000 | |
Wheel Tread(mm) | 1525 | |
Max. Troque Output (N.m) | 9400 | |
Housing Spec.(mm*mm) | 110*110*8 | |
Ratio | 4.222/4.875/5.375/5.571/6.142 | |
Drum Brake Spec | ∮320*100(Hydraulic Brake) | |
∮320*120(Aerodynamic Brake) | ||
Axle Weight(Kg) | 240(Hydraulic Pressure) | |
300(Aerodynamic Pressure) | ||
Matching Model | 6~7M Bus | |
CH5HB Performance Features | ||
1.Korean-Made Carrier Assembly Ensures Low Noise. | ||
2.Low Weight, Economic Fuel Consumption. | ||
3.Efficient Drive Unit meets Torque Requirement of Euro IV Engine. | ||
4.Various Ratio makes reasonable Vehicle Motivity. | ||
5.Hydraulic, Pneumatic Brake meets different demand. | ||
6.Optional Caliper according to different demand (Disc Brake). | ||
7.Optional ASA according to different demand (Drum Brake). | ||
8.Standard ABS enhanced Vehicle Stabilization and Controllability. | ||
9.High Cost Performance, a good alternative of imported Rear Axle for 6-7m Bus. |
