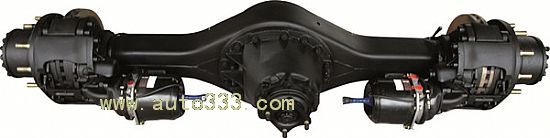

Drum/Disc Brake Rear Axle | |
Model | CH9HB |
Nominal Load(Kg) | 9000 |
Wheel Tread(mm) | 1860 |
Max. Troque Output (N.m) | 24000 |
Housing Spec.(mm*mm) | 135*145*14 |
Ratio | 3.909、4.10、4.556、4.875、5.125、6.833 |
Drum Brake Spec.(mm*mm) | ∮400*220 Stamping Welding |
∮400*180 Casting | |
Disc Brake Spec | 19.5" |
Axle Weight(Kg) | 600(Drum Brake)500(Disc Brake) |
Matching Model | 9~10.5M Bus |
CH9HB Performance Features |
1. Fine Grinding Gear Sets ensure Low Noise. |
2. Low Weight, Economic Fuel Consumption. |
3. Efficient Drive Unit meets Torque Requirement of Euro IV Engine. |
4. Various Ratio makes reasonable Vehicle Motivity. |
5. Stamping Welding Structure, most domestic Suspension matchable. |
6. Optional Caliper according to different demand (Disc Brake). |
7. Optional ASA according to different demand (Drum Brake). |
8. Standard ABS enhanced Vehicle Stabilization and Controllability. |
9. High Generality of Rear Axle of 9m Bus. |
