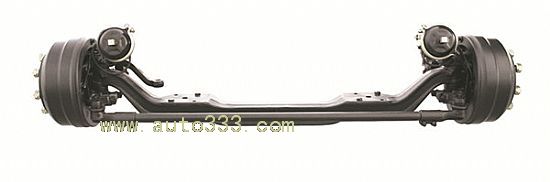

Drum/Disc Brake Front Axle Ass'y | |
Model | CH45F |
Nominal Load(Kg) | 4200~4500 |
Wheel Tread(mm) | 2036(Drum Brake)2074(Disc Brake) |
Kingpin Inclination(°) | 7° |
Caster Angle(°) | 0° |
Kingpin Camber(°) | 1° |
Kingpin Distance(mm) | 1847(Drum Brake)1840.6(Disc Brake) |
Tie-in(mm) | 0~5 |
Max.Turning Angle(°) | Inner41°/Outer33°(Drum Brake) |
Inner40°/Outer31°Disc Brake) | |
Drum Brake Spec.(mm*mm) | ∮400*130 |
Disc Brake Spec.(mm*mm) | 19.5" |
Axle Weight(Kg) | 400(Drum Brake)420(Disc Brake) |
Matching Model | 9~10.5M Bus |
CH45F Performance Features |
1. Higher Generality meets Requirement of Mid Class Buss. |
2. High Rigidity, Low Weight of Front Axle, Economic Fuel Consumption. |
3. Bigger Inner Steering Angle, Excellent Maneuverability. |
4. Adjustable Tie Rod makes flexible Toe-In available, Service Life of Tire prolonged. |
5. Reasonable King Pin Incidence improved Steering Stabilization. |
6. Optimized Outer Camber prolonged Service Life of Tire. |
7. Most domestic Suspension Structure matchable. |
8. Both domestic and abroad Disc Brakes optional. |
9. Widened Shoe of Drum Brake suitable for various ASA. |
10. Standard ABS enhanced Vehicle Stabilization and Controllability. |
