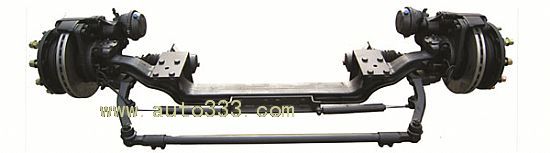

Disc Brake Tagging Axle
- Parts number:
- CH75FT
- model:
- for 12~13.7M Bus
- origin:
- China
- brand:
- CJAXLE
- Product Details
- Company Profile
Attribute
Quick Details
| Disc Brake Tagging Axle | |
| Model | CH75FT |
| Nominal Load(Kg) | 7500 |
| Wheel Tread(mm) | 2101 |
| Kingpin Inclination（°） | 8° |
| Caster Angle（°） | 3.5° |
| Kingpin Camber（°） | 0° |
| Kingpin Distance（mm） | 1813 |
| Tie-in(mm) -2~2 | |
| Max.Turning Angle(°) | Inner 15°/Outer13.3° |
| Disc Brake Spec. | 22.5" |
| Axle Weight(Kg) | 530 |
| Matching Model | 12~13.7M Bus |
| CH75FT Performance Features | |
| 1.Automatic Steering meets requirements of Multi-axle Bus and Tourism Bus. | |
| 2.Designed for Low Floor Bus, One-Step-On Convenience. | |
| 3.Long Service Life, Low Weight, Economic Fuel Consumption. | |
| 4.Tapered Roller Bearings Adopted, thus Load Capacity Increased, Steering Force Reduced. | |
| 5.Adjustable Tie Rod enables easy flexible Toe-In, Service Life of Tire prolonged. | |
| 6.Bigger Tread suitable for 2.3-2.6m-width Bus. | |
