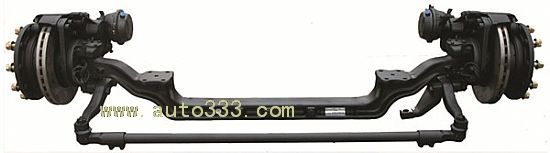

Disc Brake low floor Front Steering Axle
- Parts number:
- CH75FL
- model:
- for 12~25M Bus
- origin:
- China
- brand:
- CJAXLE
- Product Details
- Company Profile
Attribute
Quick Details
| Disc Brake low floor Front Steering Axle | |
| Model | CH75FL |
| Nominal Load(Kg) | 7500 |
| Wheel Tread(mm) | 2101 |
| Kingpin Inclination(°) | 8° |
| Caster Angle(°) | 3.5° |
| Kingpin Camber(°) | 0° |
| Kingpin Distance(mm) | 1813 |
| Tie-in(mm) -2~2 | |
| Max.Turning Angle(°) | Inner 55°/Outer40.5° |
| Disc Brake Spec. | 22.5" |
| Axle Weight(Kg) | 500 |
| Matching Model | 12~25M Bus |
| CH75FL Performance Features | |
| 1.Designed for Low Floor Bus, One-Step-On Convenience. | |
| 2.Long Service Life, Low Weight, Economic Fuel Consumption. | |
| 3.Tapered Roller Bearings Adopted, thus Load Capacity Increased, Steering Force Reduced. | |
| 4.Bigger Inner Steering Angle, Excellent Maneuverability. | |
| 5.Adjustable Tie Rod, flexible Toe-In available, Service Life of Tire prolonged. | |
| 6.Bigger Tread suitable for 2.3-2.6m-width Bus. | |
| 7.Reasonable King Pin Incidence improved Steering Stabilization. | |
| 8.Optimized Outer Camber prolonged Service Life of Tire. | |
| 9.Most domestic Suspension Structures matchable. | |
| 10.Both domestic and abroad Disc Brakes optional. | |
| 11.Standard ABS enhanced Vehicle Stabilization and Controllability. | |
