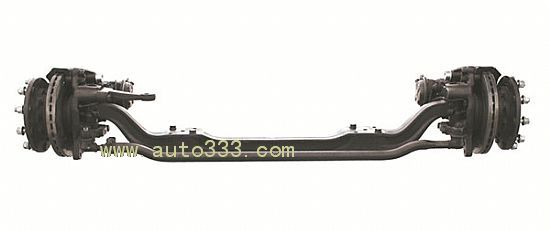

Drum/Disc Brake Front Steering Axle | ||
Model | CH55F | |
Nominal Load(Kg) | 5500 | |
Wheel Tread(mm) | 2020(Drum)2050(Disc) | |
Kingpin Inclination(°) | 7° | |
Caster Angle(°) | 0° | |
Kingpin Camber(°) | 1° | |
Kingpin Distance(mm) | 1853.3 | |
Tie-in(mm) | 0~5 | |
Max.Turning Angle(°) | Inner 47°/Outer36°(Drum Brake) | |
Inner 45°/Outer37°(Disc Brake) | ||
Drum Brake Spec.(mm*mm) | ∮400*150 | |
Disc Brake Spec. | 22.5" | |
Axle Weight(Kg) | 420(Drum Brake)440(Disc Brake) | |
Matching Model | 10~12M Bus | |
CH55F Performance Features | ||
1.Higher Generality meets Requirement of Mid Class Buses. | ||
2.High Rigidity, Low Weight of Front Axle, Economic Fuel Consumption. | ||
3.Tapered Roller Bearings Adopted, thus Load Capacity Increased, Steering Force Reduced. | ||
4.Bigger Inner Steering Angle, Excellent Maneuverability. | ||
5.Adjustable Tie Rod makes flexible Toe-In available, Service Life of Tire prolonged. | ||
6.Reasonable King Pin Incidence improved Steering Stabilization. | ||
7.Optimized Outer Camber prolonged Service Life of Tire. | ||
8.Most domestic Suspension Structure matchable. | ||
9.Both domestic and abroad Disc Brakes optional. | ||
10. Widened Shoe of Drum Brake suitable for various ASA. | ||
11. Standard ABS enhanced Vehicle Stabilization and Controllability. |
