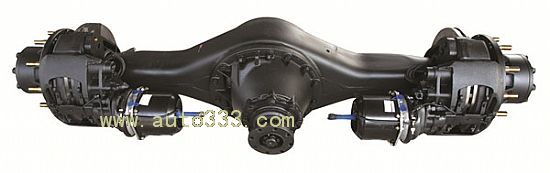

Drum/Disc Brake Rear Axle
Model	CH13HB
Nominal Load(Kg)	11000
Wheel Tread(mm)	1860
Max. Troque Output (N.m)	30000
Housing Spec.(mm*mm)	15815814
Ratio	3.818/3.909/4.10/4.333/4.444/4.875/
	5.125/5.143/5.571/6.166/6.333/6.5/6.833
Drum Brake Spec.(mm)	∮410*220
Disc Brake Spec	22.5"
Axle Weight(Kg)	690(Drum Brake)630(Disc Brake)
Matching Model	10~12M Bus

CH13HB Performance Features

1.Fine Grinding Gear Sets ensure Low Noise.
2.Low Weight, Economic Fuel Consumption.
3.Efficient Drive Unit meets Torque Requirement of Euro IV Engine.
4.Various Ratio makes reasonable Vehicle Motivity.
5.Stamping Welding Structure, most domestic Suspension matchable.
6.Optional Caliper according to different demand (Disc Brake).
7.Optional ASA according to different demand (Drum Brake).
8.Standard ABS enhanced Vehicle Stabilization and Controllability.
9.High Generality of Rear Axle of 10-11m Bus.
