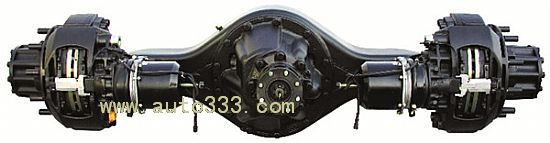

Drum/Disc Brake Rear Axle
Model	CH15HB
Nominal Load(Kg)	13000
Wheel Tread(mm)	1860
Max. Troque Output (N.m)	45000
Housing Spec.(mm*mm)	14516514
Ratio	2.928/3.071/3.25/3.545/3.909/4.333/4.875/5.571
Drum Brake Spec.(mm)	∮410*220
Disc Brake Spec	22.5"
Axle Weight(Kg)	720(Drum Brake)650(Disc Brake)
Matching Model	12~13.7M Bus

CH15HB Performance Features

1.Korean-Made Gear Sets ensure Low Noise.
2.Low Weight, Economic Fuel Consumption.
3.Efficient Drive Unit meets Torque Requirement of Euro IV Engine.
4.Various ratio makes reasonable Vehicle Motivity.
5.High-Frequency Quenched Spindle, convenients for Rim disassembling.
6.Stamping Welding Structure, most domestic Suspension Matchable.
7.Optional Caliper according to different demand.
8.Optional ASA according to different demand.
9.Standard ABS enhanced Vehicle Stabilization and Controllability.
