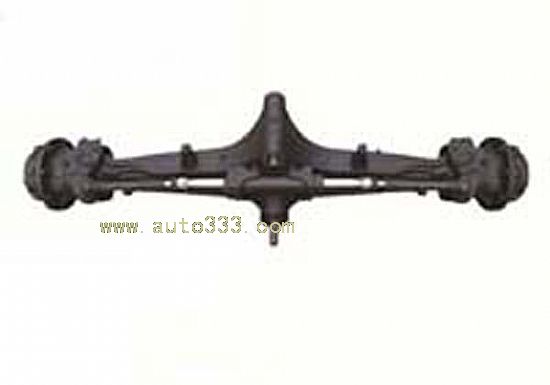

Engineering Machinery Vehicle Front Steering Driving Axle | ||
Model | CH7502 | |
Nominal Load(Kg) | 9000 | |
Wheel Tread(mm) | 1820° | |
Kingpin Inclination(°) | 7° | |
Caster Angle(°) | 0° | |
Kingpin Camber(°) | 1.5° | |
Kingpin Distance(mm) | 1560 | |
Tie-in(mm) -2~2 | 0 | |
Max.Turning Angle(°) | inner 50°/outer39.32° | |
Central Reduction Device Ratio | 2.462 | |
Wheels Reduction Device Ratio | 6 | |
Axle Weight(Kg) | 320 | |
Matching Model | 75 Backhoe Loader | |
CH7502 Performance Features | ||
1.Small curve radius, light weight, high rigidity, nice trafficability. | ||
2.Joint and composite materials bearing, steering resistance reduced, safe and reliable. | ||
3.Wheel reduction gear enlarges output torque to meet torque requirement. | ||
4.Applicable to wheel backhoe loader of rated load bucket capacity 1 cbm and rated backhoe bucket capacity0.25-0.3 cbm and other special vehicle |
