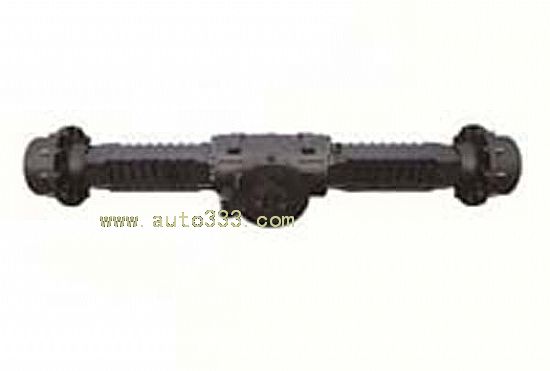

Engineering Machinery Vehicle Rear Axle

Model	CH7503
Nominal Load(Kg)	13000
Wheel Tread(mm)	1870
Central Reduction Device Ratio	2.466
Wheels Reduction Device Ratio	6.923
Input Maximum Allowable Twisting (Nm)	1300
Running Brake Parameter	Brake Torque 51750 Nm
Running Brake Parameter	Rated Working Hydraulic Oil Pressure 4.3Mpa
Halt Brake Parameter	Brake Torque 19250 Nm
	Parking Braking Pulling Force 360N
Brake Spec.	Mult-disk Wet Brake
Axle Weight(Kg)	470
Matching Model	75 Backhoe Loader


CH7503 Performance Features

1.Adopted rectangle section, light weight, high rigidity, nice trafficability.
2.Wet multidisc brake, maintenance free.
3.Wheel reduction gear enlarges output torque to meet torque requirement; external parking brake, convenient assemble.
4.With differential lock, better trafficabilityand other special vehicle.
5.Applicable to wheel backhoe loader of rated load bucket capacity 1 cbm and rated backhoe bucket capacity 0.25-0.3 cbm and other special vehicle.
